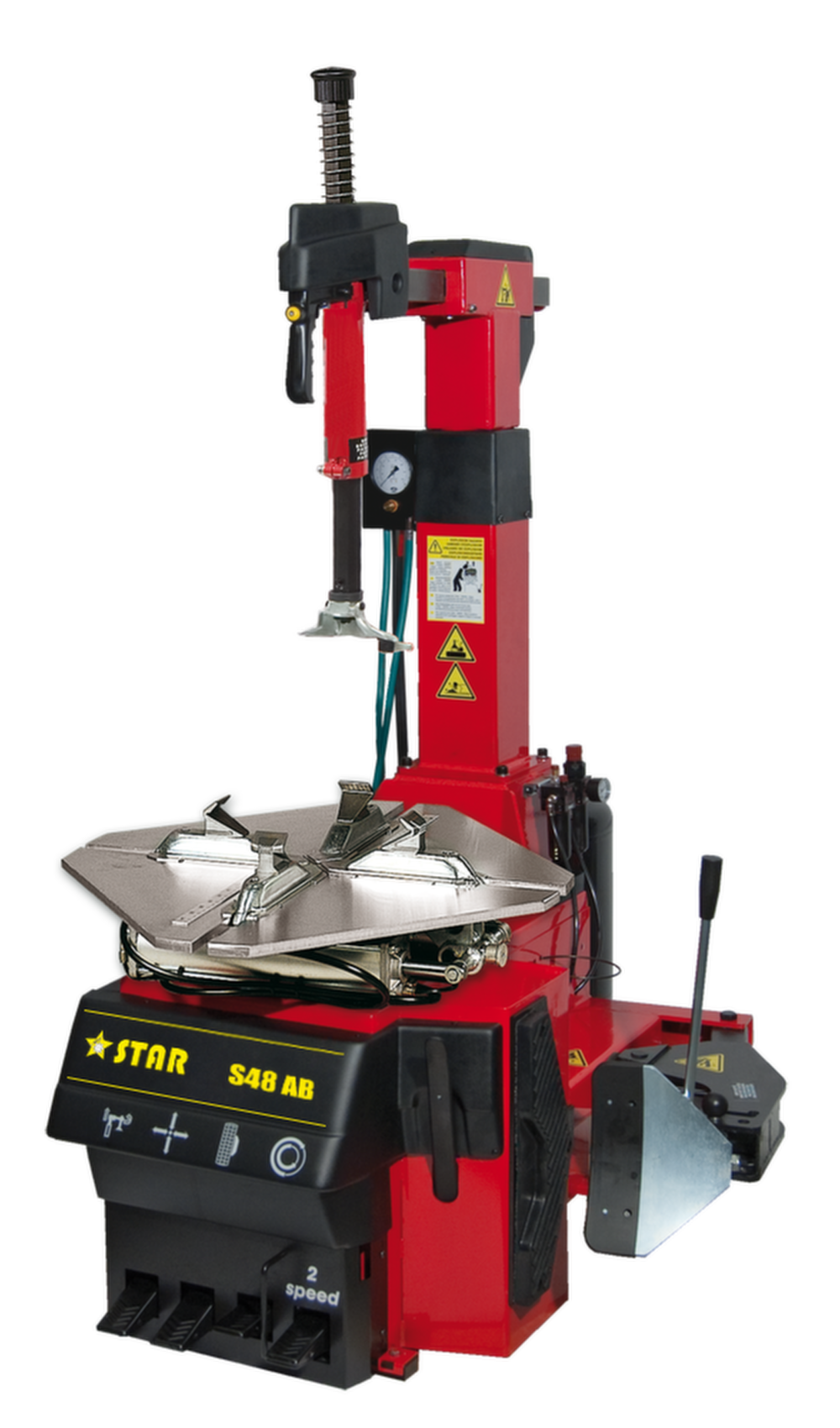

Automatic tire changer

Download technical sheet

AUTOMATIC TIRE CHANGER with side overturning specifically designed for professionals in the sector, suitable for the disassembly and assembly of wheels of cars and vans of considerable weight and dimensions: locking capacity from 10“ to 27”. Their particular sturdiness and reliability, the extractable drawer pedal to facilitate maintenance operations, the double-acting bead breaker cylinder, the low ground clearance and the adoption of numerous patented technical solutions make them ideal for operating on particularly difficult tires. and lowered like the «Run-Flat».

  • • SIDE AUTOMATIC TILTING SYSTEM equipped with game recovery system and double locking system with horizontal arm sliding rollers. The operating arm can be manually operated by a reinforced spring or by pneumatic movement by means of a cylinder to obtain a better level of safety and precision.

    • Available in the version with tipping to the left.

    • QUICK CHANGE TURRET system integrated in the vertical rod that allows an immediate change of the tool without losing the original working capacity of the machine.
    • Supplied with optional UPH and BPS (right tipping), auxiliary equipment that assists the operator during the assembly and disassembly of low or particularly difficult wheels such as Run-Flat.

    • Supplied with optional SPH, tipping to the left.

    Technical data / Technical data

    • Internal clamping capacity / Inside clamping capacity - 13" 27"
    • External clamping capacity / External clamping capacity - 10" - 24"
    • Maximum wheel diameter / Max wheel diameter - 1040 mm (41")
    • Max wheel width / Max wheel width - 14"
    • Torque / Rotation torque - 1200 Nm (400V 3ph)
    • Rotation speed / Turntable speed - 8 rpm
    • Bead breaker force/ Bead breaker force - 2900 Kgf (6395 lbf)
    • Operating pressure / Working pressure - 8-10 Bar (116-145 psi)
    • Motor el. three-phase / 3-phase el. motor - 0.55 kW (0.75 Hp)
    • Motor el. monophase / 1-phase el. motor - 0.75 kW (1.0 Hp)
    • Net weight / Net weight - 265 Kg


Plase, select:

Code: ASM01XSXX0182


Availability: not available
