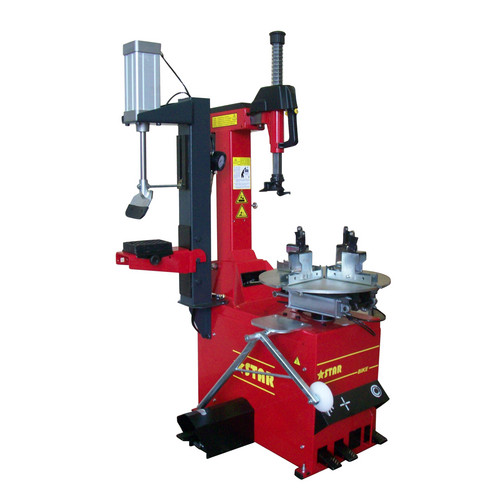

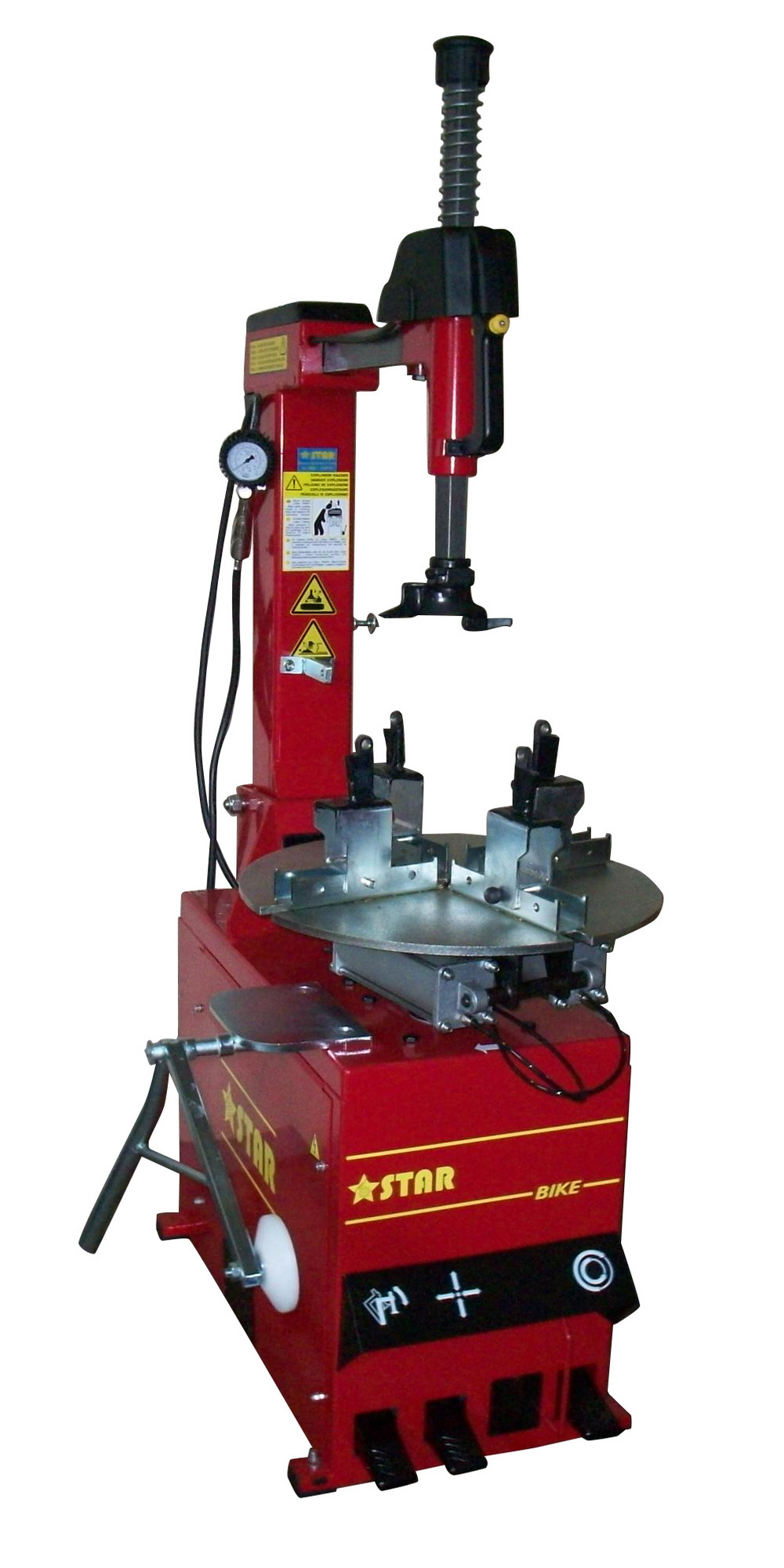

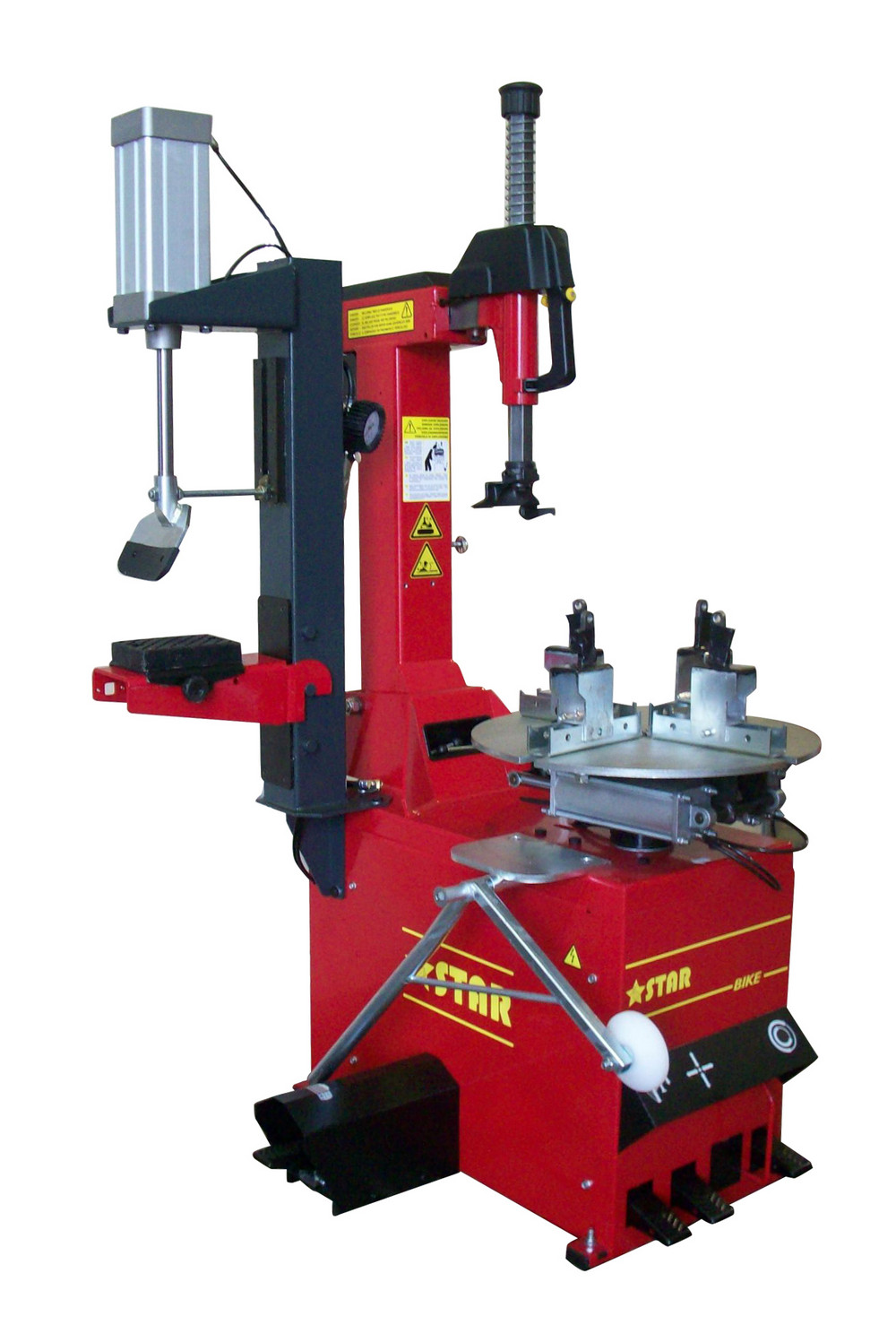

The ATS-BIKE is a PROFESSIONAL automatic tyre changer, designed and manufactured for the assembly/ disassembly of tires for motorcycles, scooters, go-karts and ATV (quad), CROSS. It has been modified with special technical measures, the result of many years of experience in the field, to make it easy and immediate assembly and disassembly of MOUSSE. The self-centering plate, also modified, allows to tighten rims from 5" to 21" thanks to 3 different positions of the jaws, easily selectable without the use of tools. For rims from 6" to 16" a special kit of ATV adapters is recommended. The jaws of the plate have been specially made not to ruin the rims of the motor vehicles, as well as the particular conformation of the bead tower. It is distinguished from other products by the positioning of the bead breaker, located in a lateral position to the structure, and for the vertical work of the bead breaker paddle ( guillotine ) and thanks to a cantilever support positioned at a height that does not cause the operator fatigue of the upper limbs even in case of continuous use during the operation of detachment of the tire from the rim. The studding capacity is adjustable to operate smoothly both on thick wheels such as quad tires (ATV) and on those small scooter type. The wheel holder can be positioned in 3 different positions until reaching a maximum bead strength of 370 mm (14.5"). Easy to use, supplied with PVC jaw guards, tire lever grease brush. Made according to current safety standards (CE). Available in versions with and without bead breaker.

View gallery
Watch video

  • • Clamping capacity: 5”-21”

    • Clamping capacity with atv: 6” -16”

    • Max wheel diameter: 1000 mm (39,5”)

    • Max wheel width:

    -          With bead breaker wheel support pos.1: 190 mm – 7,5”

    -          With bead breaker wheel support pos.2: 280 mm – 11”

    -          With bead breaker wheel support pos.3: 370mm – 14,5”

    • Bead breaker force: 750 Kg

    • Working pressure: 8-10 Bar (116-145 psi)

    • 1-phase el. Motor: 0,75 Hp

    • 3-phase el. Motor: 0,5 Hp

    • Net weight: 150 Kg


Plase, select:

Code: ASM01XSXX0096


Availability: not available
