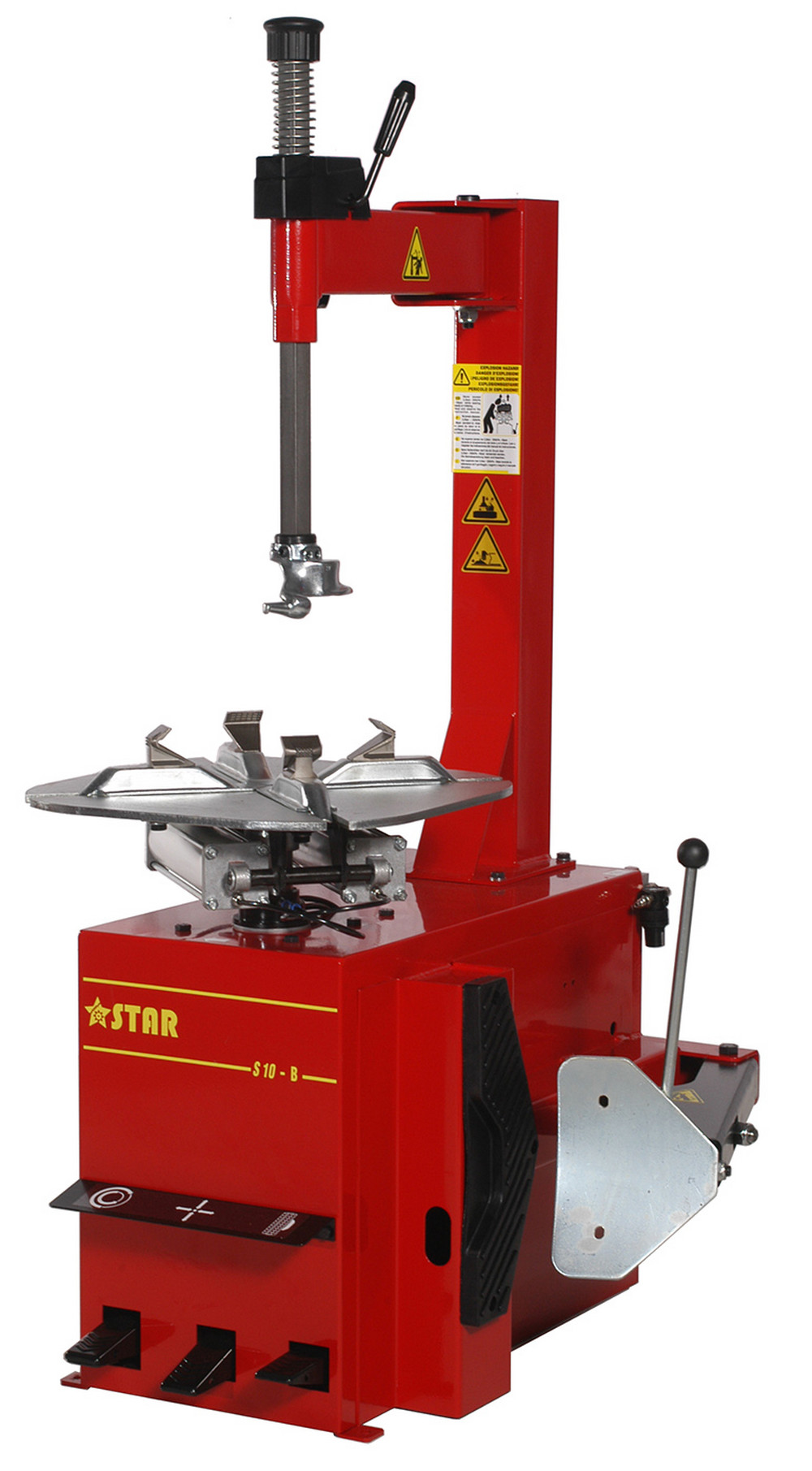

SMONTAGOMME S10 B


The S10 B is a tire changer with tree flag. The locking of the tire is ensured by a self-centering plate semi-round, dual direction of rotation, 10 mm commanded by 2 cylinders. In order to comply with new EU regulations CE 's S10 B is equipped with a semi-athe lower limbs of the operator.utomatic lubricator and protection to the pedals in order to better protect



  • Technical data
    3 phase electric 0,75 Hp
    1 phase electric motor 1,2 Hp
    Bead breaker cylinder power  2600 Kg
    Working pressure 10 Bar (145 psi)
    Max wheel diameter 1000 mm
    Max wheel width 320 mm
    It handles wheels from 10"- 22"
    External clamping 10" - 20"
    Internal clamping 12" - 22"
    Net weight 150 Kg
    Gross weight 170 Kg
    Packing dimensions 980x765x970mm

SMONTAGOMME S10 B

Plase, select:


Code: ASM01XSXX0009

Quantity:

Availability: not available
