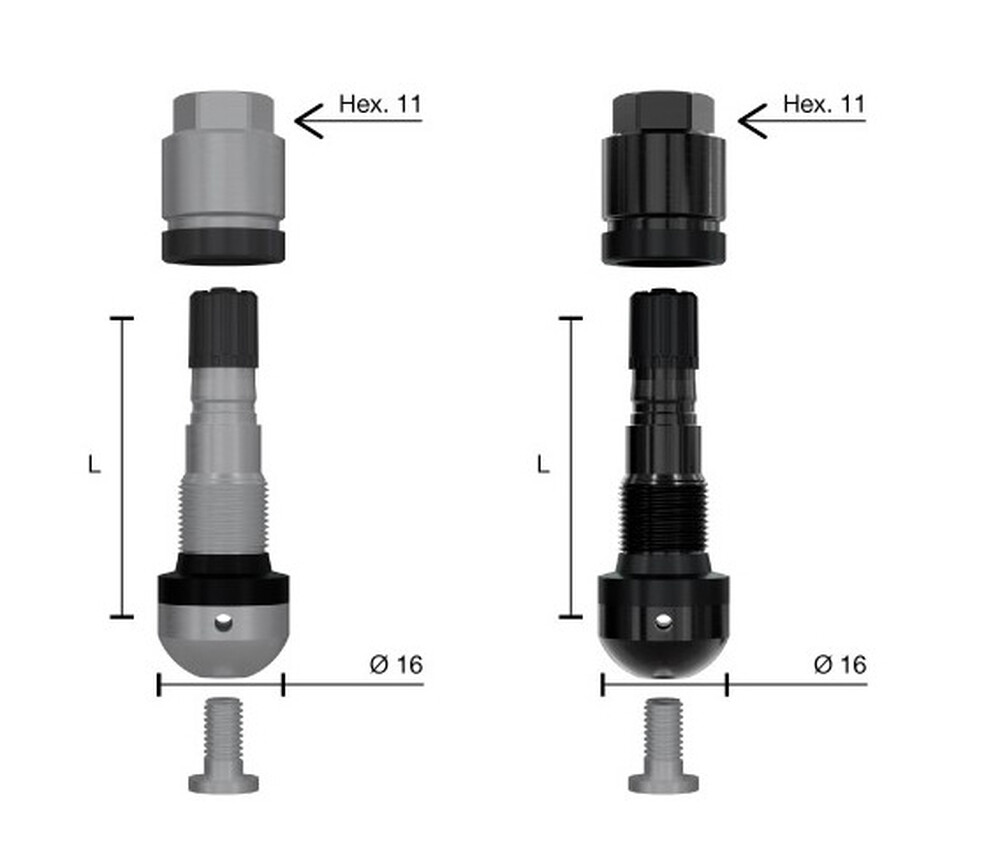

TPMS 1320/U/A/BL METAL 10PZ. valve

Description
Metal valves for variable-angle TPMS sensors
Valves with standard "Two-shot" mounting

Pre-assemble the valve with the screw and sensor

Install the valve in the rim hole and tighten the nut, taking care to hold the valve firmly in place.
Screw on the sensor afterwards.
For cars and commercial vehicles

Screw included (torque 2.5 Nm)

Details
Recommended screw torque
4 Nm
Rim hole
11.5 mm [.453"]
L 36 mm
