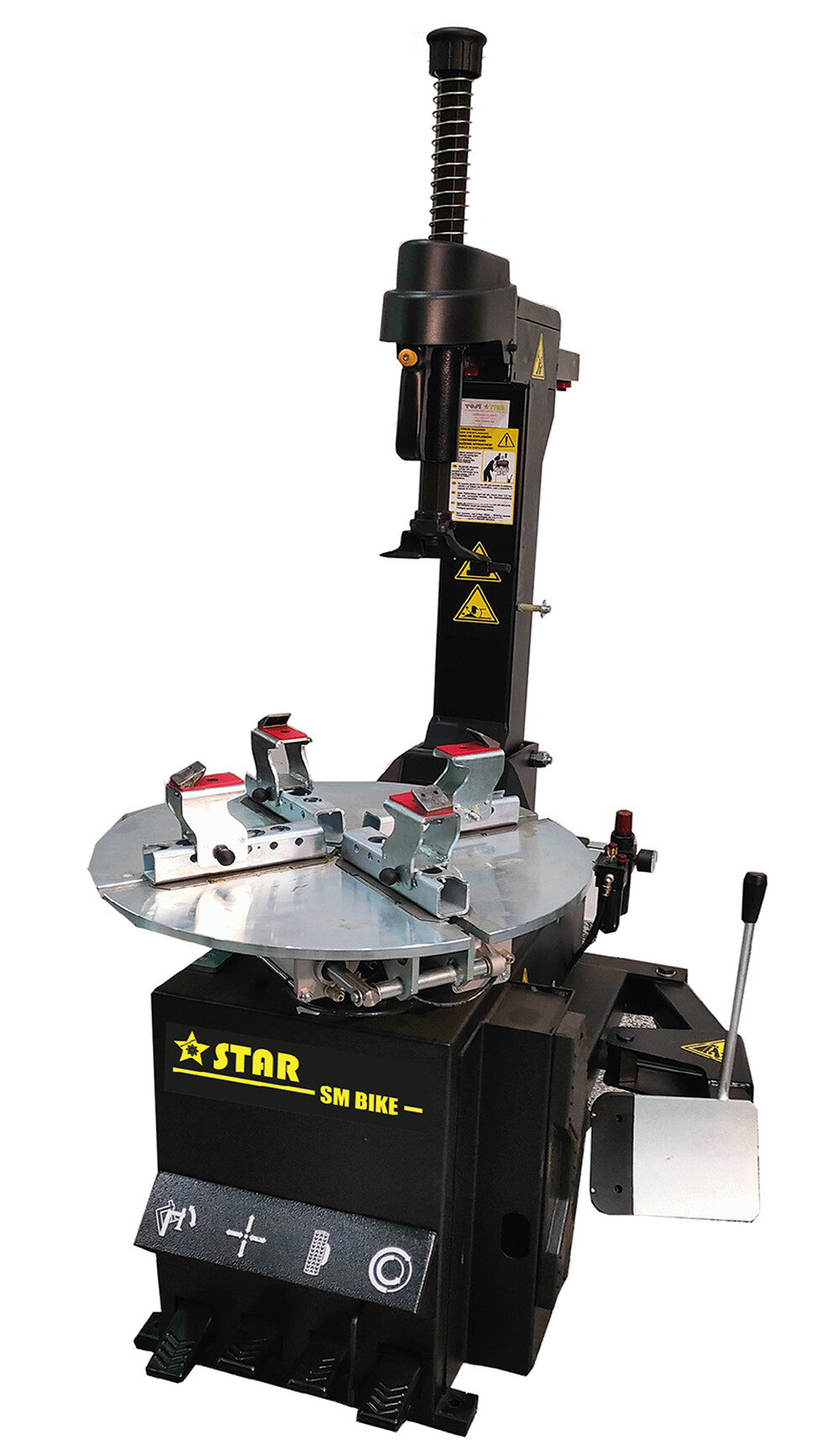

TYRE CHANGER SM BIKE SL


Download technical sheet

The SM BIKE SL is an automatic PROFESSIONAL tire changer, designed and created for the assembly/disassembly of tires from motorcycles, scooters, go-karts and ATV (quad). The latest generation self-centering plate has a locking capacity that allows to tighten rims from 4” to 26” .
Thanks to 5 different positions of the claws, easily selectable without the use of tools. For rims from 6” to 16” a special ATV adapter kit is recommended. The plate jaws were made specifically to avoid damaging the rims of motorcycles, as was the particular shape of the bead breaker turret. Easy to use, supplied with plastic protections, tire changer lever, grease brush. Complete with lateral bead breaker which makes it very solid during transport. Equipped as standard with provisions for installing the MOUSSE KIT.

  • • Clamping capacity: 4”-26”

    • Clamping capacity with atv: 6” -16”

    • Max wheel diameter: 1000 mm (39,5”)

    • Max wheel width:   320 mm

    • Bead breaker force: 280 Kgf

    • Working pressure: 8-10 Bar (116-145 psi)

    • 1-phase el. Motor: 0,75 Hp

    • 3-phase el. Motor: 0,5 Hp

    • Net weight: 150 Kg

TYRE CHANGER SM BIKE SL

Code:

Quantity:

Availability: not available
