TYRE CHANGER ATS BIKE SL


Download technical sheet

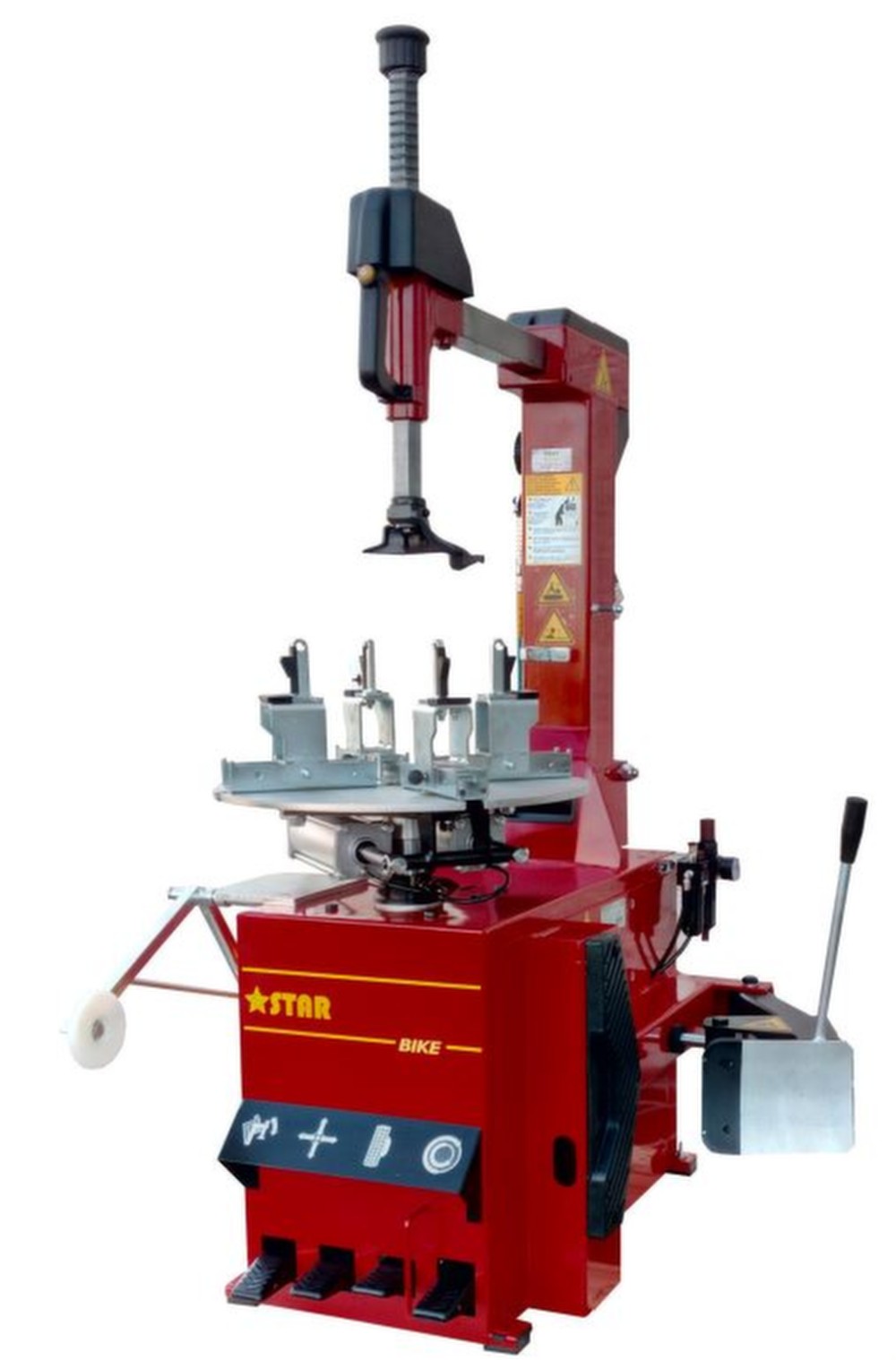

The ATS-BIKE SL is an automatic PROFESSIONAL tire, designed and built for the assembly / disassembly of motorcycle, scooter, go - kart and ATV (quad) tires, CROSS. It has been modified with special technical technicians, the result of a multi-year experience in the field, to make MOUSSE simple and straightforward and disassembling. The self-centering plate, also modified, allows to tighten 5" to 21" circles thanks to 3 different positioning of the grippers, easily selectable without the use of tools. For the 6" to 16" rims, a special adapters kit is recommended. The dish grippers have been specially designed to not ruin the motorcycle wheels, as well as the particular shape of the turret stacker. Easy to use, supplied with pvc jaws protector, grease brush tire release lever. In versions with lateral bead release.

  • • Clamping capacity: 5”-21”

    • Clamping capacity with atv: 6” -16”

    • Max wheel diameter: 1000 mm (39,5”)

    • Max wheel width:

    -          With bead breaker wheel support pos.1: 190 mm – 7,5”

    -          With bead breaker wheel support pos.2: 280 mm – 11”

    -          With bead breaker wheel support pos.3: 370mm – 14,5”

    • Bead breaker force: 750 Kg

    • Working pressure: 8-10 Bar (116-145 psi)

    • 1-phase el. Motor: 0,75 Hp

    • 3-phase el. Motor: 0,5 Hp

    • Net weight: 150 Kg

TYRE CHANGER ATS BIKE SL

Code: ASM01XSXX0173

Quantity:

Availability: not available
